Full Automation Cartridge type Filtering systems with backwash function

Clean Aqua

Fully automatic cartridge type filtration device "Clean Aqua" has five features that provide the best cost performance in pool facilities for all purposes such as school pools, public pools, fitness clubs, and leisure pools.

5 major features of "Clean Aqua"

  1. Minimum amount of backwash
    By backwashing with air, backwashing is possible with about 50% of the displacement of conventional filtering systems.
  2. Highest filtration accuracy
    A high-performance filter (nominal filtration accuracy of 3 μm) is used to capture SS.
  3. The most compact outer shape
    Installation space can be reduced by the unitized vertical cartridge structure.
  4. Easy maintenance
    No chemicals such as diatomaceous earth or flocculants are used, so there is no troublesome chemical replenishment work.
  5. The easiest construction
    The equipment is small and unitized, and does not require any special skills for loading and installation.

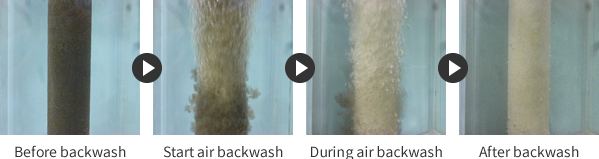

The condition of the cartridge surface during air backwashing

"Clean Aqua" removes dirt from the filter surface and discharges it by air backwashing for about 10 seconds every 2 to 3 hours of continuous filtration operation. Unlike backwashing with swimming pool water, it compresses air in the atmosphere. Since the backwash is performed by backwashing, the amount of backwashing water is less than about 50% of that of the conventional filtration device, which is very economical. In addition, the amount of discharge per time is extremely small and it does not contain chemicals such as diatomaceous soil and flocculants. It is possible to drain water to septic tanks, and it is ideal for areas where there is no sewerage facility or where you want to reduce the drainage load.

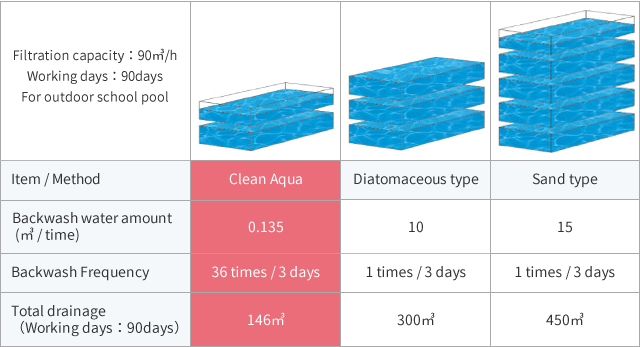

Comparison of backwash water volume by filtration method

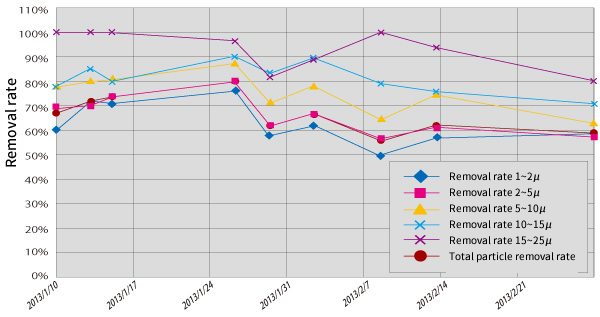

Filtration accuracy data

The figure below shows the removal rate by particle size by the actual pool. Removes 60% or more of particles of 5 μm or less. 80% or more of particles larger than 5 μm are removed.

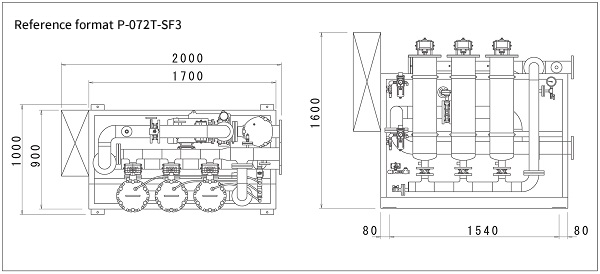

External shape and specifications

Model P-024T-SF1 P-048T-SF2 P-072T-SF3 P-096T-SF4 P-120T-SF5 P-144T-SF6
Processing amount（m³/h） 24 48 72 96 120 144
Housing (tower) 1 2 3 4 5 6
Cartridge (stick) 4 8 12 16 20 24
Design pressure 0.3MPa
Material Housing SUS304
Mount SS/Hot-dip galvanized
Plumbing SGP/Hot-dip galvanized
External dimensions
(width x depth x height) mm		 1,490×
935×
1,600		 1,840×
1,000×
1,600		 2,000×
1,000×
1,600		 2,600×
1,360×
1,800		 2,900×
1,360×
1,800		 3,210×
1,360×
1,800

Weight
(approx.)

Space time 300kg 550kg 600kg 950kg 1,000kg 1,100kg
When driving 345kg 660kg 760kg 1,150kg 1,260kg 1,300kg
Connection diameter Raw water 65A 80A 100A 125A 125A 150A
Treated water 65A 80A 100A 125A 125A 150A
Backwash drainage 50A 65A 100A 100A 100A 100A
Drain 25A 25A 25A 25A 25A 25A
Displacement (approx.)
Per cleaning		 30L 70L 100L 135L 165A 200L
Filtration
pump		 Power3φ×200V 2.2KW 3.7KW 5.5KW 7.5KW 7.5KW 11KW
Hair catcher
(inner diameter of main body, entrance x exit)		 φ200
65×65		 φ200
80×80		 φ200
125×80		 φ200
125×100		 φ250
150×100		 φ250
150×125
Compressor 0.2LE-8TBA 0.4LE-8TB
Air tank - -
