Cartridge Filtering systems (For Rainwater)
For Rainwater
This system involves a simple cartridge change once its limit has been reached, eliminating the need for a thorough cleaning.
Characteristics
- No cartridge cleaning needed
- No operation valve
- Easy operation and maintenance
- Filtering tank materials available: Iron, Stainless and FRP
Main expendables for this system
Cartridge, clack valve, chlorination supply parts, packing items, bearing, etc.
We also have various consumables.
- Cartridge
- Check valve
- Chlorine injection wetted parts
- Pump gland packing
- Bearing
- Various packings
Model
CFR-02・CRF-04・CRF-07・CRF-11
- Purposes
- For Rainwater

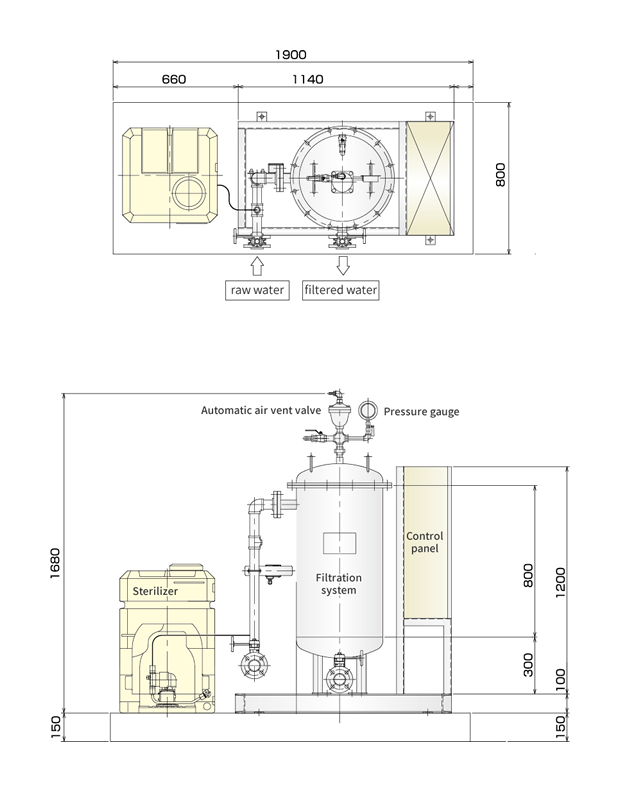

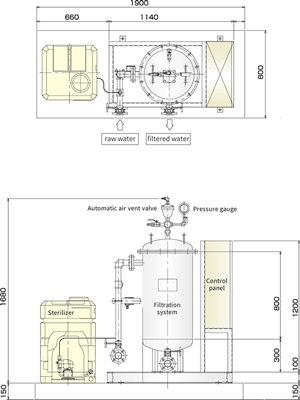

External shape and specifications
For Rainwater
| Model | CFR-02F (FRP) | CFR-04F (FRP) | CFR-07F (FRP) | CFR-11F (FRP) |
|---|---|---|---|---|
| CFR-02 (SUS) | CFR-04 (SUS) | CFR-07 (SUS) | CFR-11 (SUS) | |
| Filtering Capacity (m³/Hr) | ～2.0 | ～4.0 | ～7.0 | ～11.0 |
| Tank Dimention FRP | 300φ×550SH | 300φ×550SH | 550φ×1200SH | 550φ×1200SH |
| Tank Dimention SUS | 300φ×735SH | 300φ×735SH | 300φ×1460SH | 300φ×1460SH |
| Pump (kw) | 0.4 | 0.75 | 0.75 | 1.5 |
| Connection Bore | 25A | 32A | 40A | 50A |
*Please scroll left to see →
