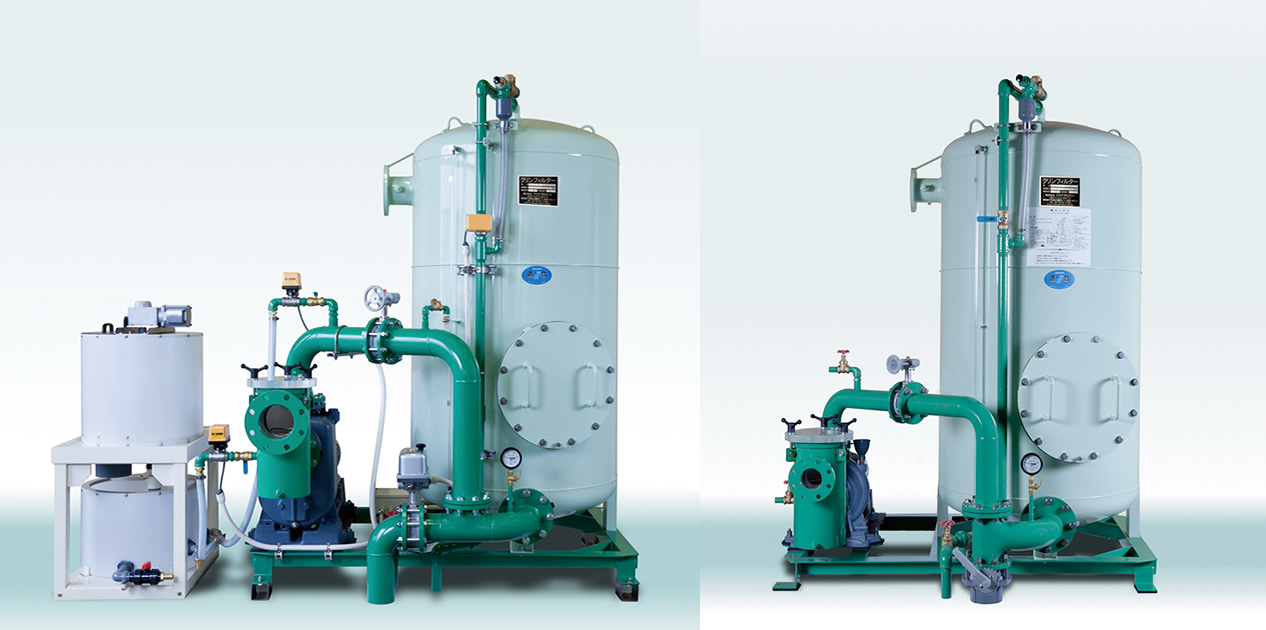

Diatomite Filtering systems (Vertical type)
Automatic Diatomite Filtering systems (Vertical type)
Manual Diatomite Filtering systems (Vertical type)
The Diatomite Filtering systems offer the highest performance among the three major methods listed above.
Our original inner pre-coating method allows reduced drive load ( normally one rank of filtering pump power can be reduced) thanks to diatomite filtration inside the filter.
This creates a larger filtering area, thereby reducing operation costs and requiring less tank thickness. Stainless steel is the standard tank material this system.
Characteristics
- Stainless steel is standard material for the tank and basement
- Our original inner pre-coating
（20 sq. meter filtering area Filtering capacity: 60 cubic meters/hour） - Reduction of operation cost, especially electricity. For example, at 60cubic meters/hour, our consumption of electricity is 3.7kw compared to 5.5kw of other systems
- Automatic model has liquid crystal touch panel.
We also have various consumables.
- Leaf
- Automatic valve
- Check valve
- Chlorine injection wetted parts
- Pump gland packing
- Bearing
- Various packings
Model
P-030ME～120ME、P-030M～120M
- Purposes
- Circulation and Filtering for Swimming Pool Water
Automatic
| Model | Filtering Capacity | Power (pump) |
Weight (empty/under operation) |
Connection Diameter | Machine Body Dimensions (width×depth×height) |
|---|---|---|---|---|---|
| m³/h | kW | kg | A | mm | |
| P-030ME | ～30 | 2.2 | 570/2020 | 65 | 1870×1400×2270 |
| P-040ME | ～48 | 2.2 | 570/2020 | 80 | 1880×1400×2270 |
| P-060ME | ～75 | 3.7 | 650/2100 | 100 | 1890×1400×2270 |
| P-090ME | ～90 | 5.5 | 770/2300 | 125 | 1940×1590×2300 |
| P-120ME | ～120 | 7.5 | 980/2810 | 125 | 2070×1770×2350 |
