Diatomite Filtering systems (Horizontal type)
Automatic Diatomite Filtering systems (Horizontal type)
Manual Diatomite Filtering systems (Horizontal type)
The diatomite filtering system is the filtration system with the highest filtration accuracy.
By forming a filtration membrane on the outer surface of the leaf (pressurized leaf-type filter), a pump with a high pumping capacity can be used.The control panel of the automatic type has an LCD touch panel, and the weekly timer can be set to perform automatic shower cleaning, precoating, and filtration operation. The manual type also utilizes a butterfly valve for the operating valve.
Characteristics
- The horizontal tank allows for a low ceiling height in the machine room.
- Our original external pre-coating
（20 sq. meter filtering area Filtering capacity: 60 cubic meters/hour） - The precoating can be stopped temporarily, making it easy to precoat when re-commissioning the machine.
- Automatic model has liquid crystal touch panel.
We also have various consumables.
- Leaf
- Automatic valve
- Check valve
- Chlorine injection wetted parts
- Various packings
Model
automatic：PF-308A・PF-515A・PF-7520A・PF-1030A・PF-1530A
manual：PF-308・PF-515・PF-7520・PF-1030・PF-1530
- Purposes
- Circulation and Filtering for Swimming Pool Water

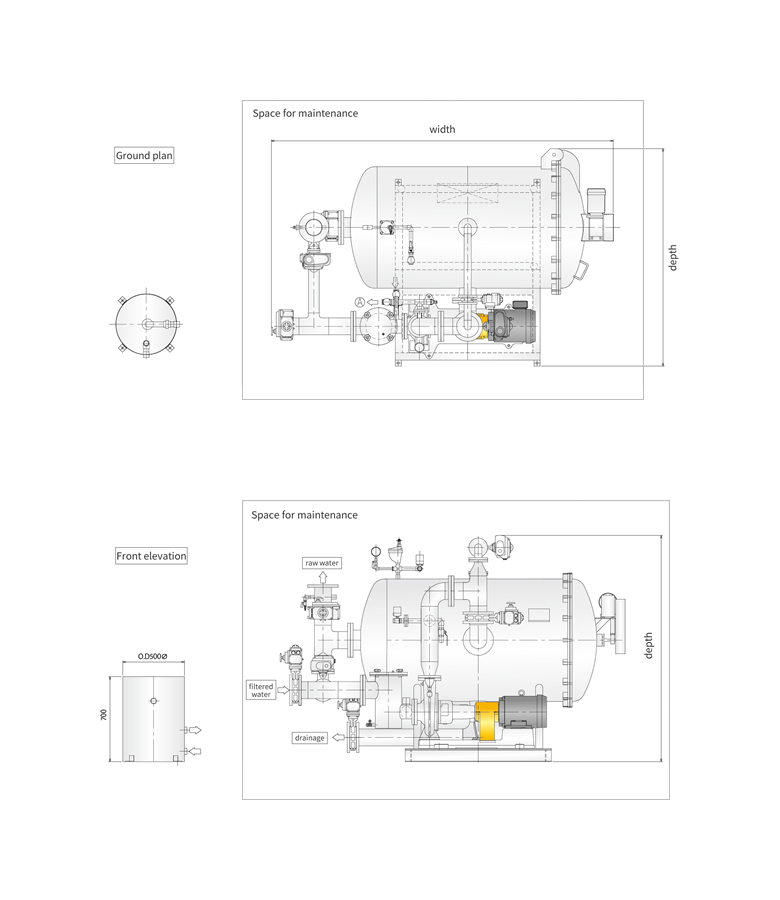

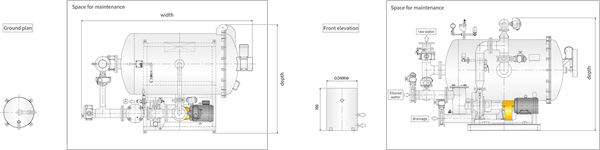

External shape and specifications (Automatic)
Automatic
| Model | Filtering Capacity | Power (pump) |
Weight (empty/under operation) |
Connection Diameter | Machine Body Dimensions (width×depth×height) |
|---|---|---|---|---|---|
| m³/h | kW | kg | A | mm | |
| PF-308A | ～30 | 2.2 | 450/850 | 65 | 1850×1450×1480 |
| PF-515A | ～50 | 3.7 | 790/1540 | 80 | 2340×1650×1810 |
| PF-7520A | ～75 | 5.5 | 950/1850 | 100 | 2690×1650×1810 |
| PF-1030A | ～120 | 7.5 | 1270/2700 | 125 | 2800×1800×1850 |
| PF-1530A | ～150 | 11 | 1350/2950 | 150 | 2960×1800×1950 |
