Sand Filtering systems (For Pool Water)
For Pool Water

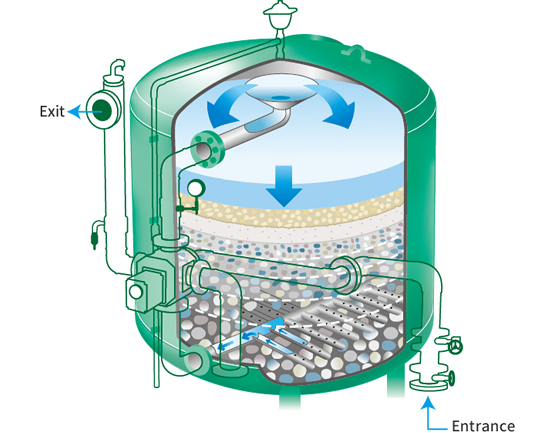

Major filtering systems for swimming pools have been sand filteration, with water passing through the filtering materials from top to bottom inside of the tank and removing SS.
We offer automatic valves (5 ways, air and electric) to meet your needs.
Characteristics
- Tank materials available specific to your needs: iron, stainless, and FRP
- Lining arrangement offered : FRP or rubber
- Automatic valves available : 5 ways, air and electricity
- Dual-layered filtration structure collects more SS by volumetric filtration
Main expendables for this system
Filtering materials, automatic valve, clack valve, chlorination supply parts, coagulation aid supply parts, packing items, bearings, etc.
We also have various consumables.
- Filter material
- Automatic valve
- Check valve
- Chlorine injection wetted parts
- Coagulant injection wetted parts
- Pump gland packing
- Bearing
- Various packings
Model
P-005SE・010SE・020SE5・030SE5・040SE5・060SE5・090SE5・120SE5・150SE5
- Purposes
- For Pool Water

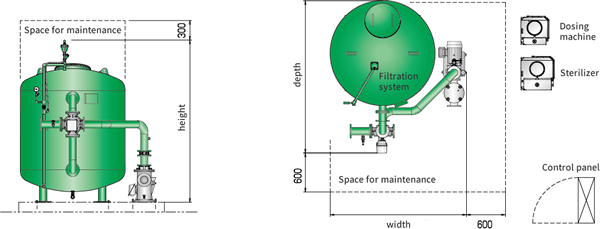

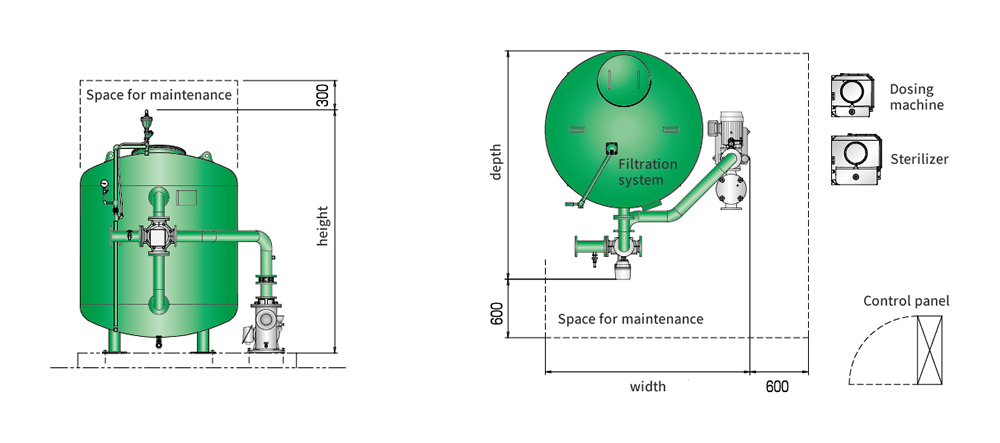

External shape and specifications
For Pool Water
| Model | Filtering Capacity | Power (pump) |
Weight (empty/under operation) |
Connection Diameter | Machine Body Dimensions (width×depth×height） |
|---|---|---|---|---|---|
| m³/h | kW | t | A | mm | |
| P-005SE | ～5 | 0.4 | 0.11/0.28 | 40 | 1030×740×1360 |
| P-010SE | ～10 | 0.75 | 0.21/0.72 | 40 | 1280×860×1620 |
| P-020SE5 | ～25 | 2.2 | 0.57/2.55 | 65 | 1510×1590×2270 |
| P-030SE5 | ～37 | 3.7 | 0.66/3.75 | 80 | 1680×1820×2360 |
| P-040SE5 | ～50 | 3.7 | 0.76/4.4 | 80 | 1790×1990×2400 |
| P-060SE5 | ～72 | 5.5 | 1.05/6.7 | 100 | 2100×2350×2500 |
| P-090SE5 | ～108 | 7.5 | 1.35/10.5 | 125 | 2680×2800×2720 |
| P-120SE5 | ～144 | 11 | 2.15/14.7 | 150 | 3030×3470×2820 |
| P-150SE5 | ～189 | 15 | 2.4/17.6 | 150 | 3280×3670×2900 |
*Please scroll left to see →
