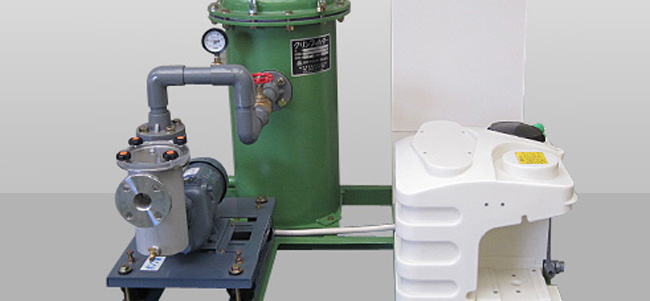

Cartridge Filter System

Cartridge Filter System
This system involves a simple cartridge change once its limit has been reached, eliminating the need for a thorough cleaning.
Characteristics
  • No cartridge cleaning needed
  • No operation valve
  • Easy operation and maintenance
  • Filtering tank materials available: Iron, Stainless and FRP

Main expendables for this system
Cartridge, clack valve, chlorination supply parts, packing items, bearing, etc.
Model
P-005T〜090T

Purposes

  • Circulation and Filtering for Swimming Pool Water

Model＼Item Filtration
capability		 Pump Piping Installation
Spaces		 Weight
(under operation)
m³/h kW In×Out(mm) depth x width x height(cm) kg
P-005T ～5 0.4 32 200×180×200 220
P-010T ～10 0.75 40 200×180×200 310
P-020T ～20 1.5 50 200×230×200 650
P-040T ～37 3.7 80 255×265×200 920
P-060T ～56 5.5 100 255×305×200 1,150
P-090T ～81 7.5 125 275×385×200 1,750
AQUA PRODUCT is a leading swimming pool designer/builder in Japan with over 40 years experience and more than 6,000 successful installation records.
For more information, click here
